Vertical Transmission Jacks

Rated at either 1000 kg or 2000 kg, this unit is designed specifically to provide safe, rapid removal and replacement of heavy transmissions.

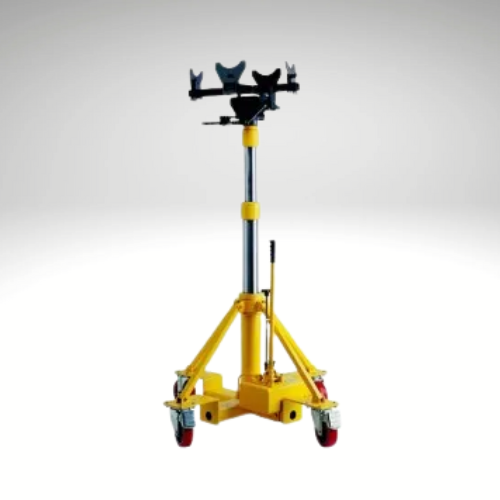

Vertical Transmission Jack VTJ1000

Simple and safe to use by just one mechanic, the unit’s low minimum height (1155mm) and unusually high extended height (2100mm) increase the unit’s flexibility. Stability comes from its wide base, safely spread over four legs. N.B. Transmission Jack Adaptor Plate is not included in the standard price.

Pit Transmission Jack VTJ1000P

A pit version of our Vertical Transmission Jack. Wheels are situated at each corner of a rectangular base rather than diagonally otherwise specification is as VTJ1000. This gives increased stability when running along a pit floor and is suitable for pits of 800mm minimum width.

vertical transmission jack

Vertical Transmission Jacks Standard Features

Two way tilt adaptor – The lifting adaptor can easily be adjusted into a precise position when removing most types of transmission.

Triple extension ram with chrome piston – Provides up to 945mm of stroke.

Manual hydraulic double acting power pack – Proven on other Majorlift equipment, this allows units of up to 1000kg to be removed with a smooth, safe and highly controllable application of power.

  • Load test certificate – supplied with each unit.
  • CE markings – conform to EC directives.
  • Capacity 1000kg.
  • Full specification available on request.

NEW VTJ2000 Vertical Transmission Jack

AIR OPERATED versions now available!

Discover all the specifics of our Vertical Transmission Jacks

If you require a Manual for the Vertical Transmission Jacks

Contact us Now!

major-lift_-11

Looking for Spares?

We have all the spares for the Vertical Transmission Jacks you need!
